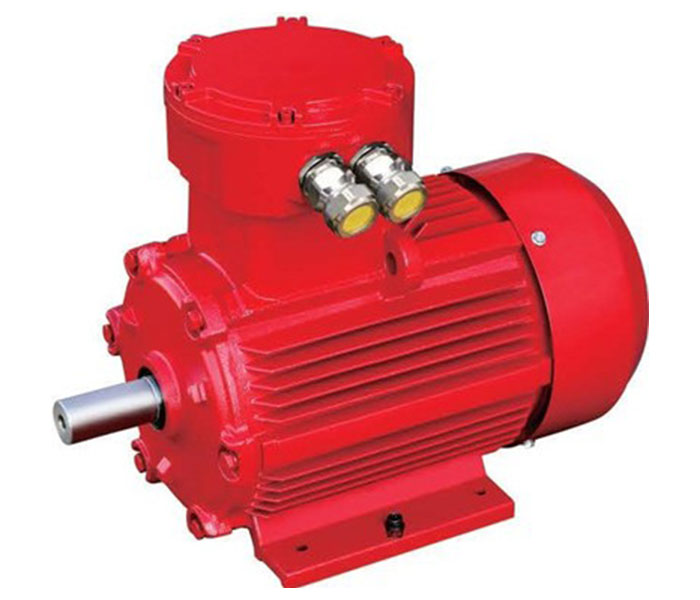

AMG High Efficiency IE2 Cast Iron Explosion Proof Motors
Specifications
- Efficiency: IE2 High Efficiency
- Construction: Cast Iron Totally Enclosed Fan-Cooled (TEFC)
- Output power: 0.55- 315kW
- Frame size: 80 – 355
- Speed: 2, 4, 6 & 8 Pole
- Voltage: △ 220-240VorY 380-415V 50Hz & 60Hz (80 to 100frame)
: △ 380-415V or Y 660-690V 50Hz & 60Hz (112 to 355 frame)
: △ 525-550V (63 to 132 frame)
: △ 525-550-575V/1000V (160 to 355 frame) - Winding: F Class insulation, B Class temperature rise
- Mounting: Standard Configurations
- IP rating: IP55
- Compliance: SANS 60079: 0&1
- Application: Hazardous Area Classification
