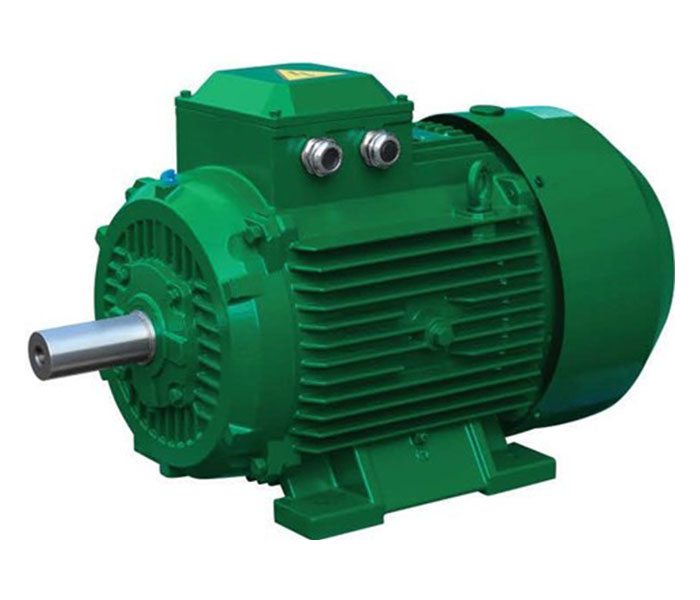

AMG Premium Efficiency IE3 Cast Iron Motors
Specifications
Efficiency: IE3 Premium Efficiency
Construction: Cast Iron Totally Enclosed Fan-Cooled (TEFC)
Output power: 0.55 -1000kW
Frame size: 80 – 450
Speed: 2, 4, 6 & 8 Pole
Voltage: △ 220-240VorY 380-415V 50Hz & 60Hz (63 to 100 frame)
: △ 380-415V or Y 660-690V 50Hz & 60Hz (112 to 355 frame)
: △ 525-550V (63 to 132 frame)
: △525-550-575V/1000V (160 to 355 frame)Winding: H Class insulation, B Class temperature rise
Mounting: Standard Configurations
IP rating: IP66
Compliance: SANS 1804: 1 &2
Application: Industry Specific – Mining – General Industry
