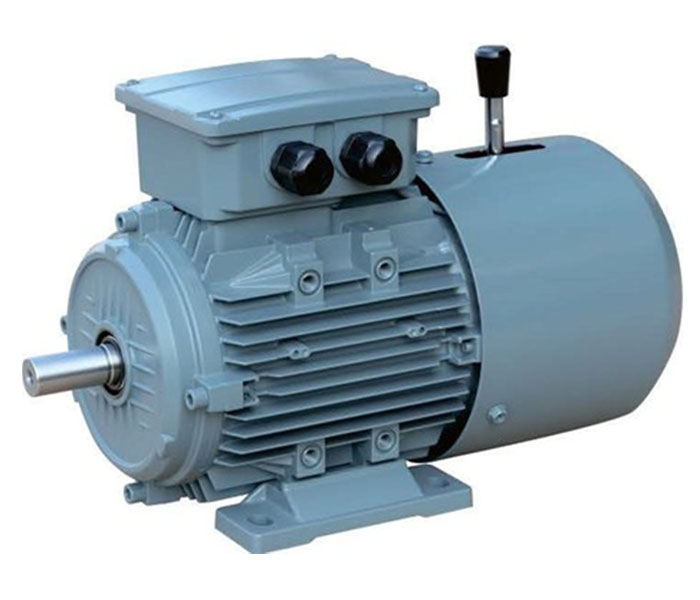

AMG Standard Efficiency IE1 Aluminium Brake Motors
Specifications
Efficiency: IE1 Standard Efficiency
Construction: Cast Aluminium Totally Enclosed Fan-Cooled (TEFC)
Output power: 0.12-7kW
Frame size: 63 – 132
Speed: 2, 4 & 6 Pole
Voltage: △ 220-240V or Y 380-41SV 50Hz& 60Hz (63 to 100 frame)
: △ 380-415Vor Y 660-690V 50Hz & 60Hz (112 to 132 frame)
: △ 525-550V (63 to 132 frame)
: △ 525-550-575V/1000V (132 frame)Brake Voltage: Same As Motor Voltage
Winding: F Class insulation, B Class temperature rise
Mounting: Standard Configurations
IP rating: IP55
Compliance: SANS 1804: 1&2
Application: General Industry
