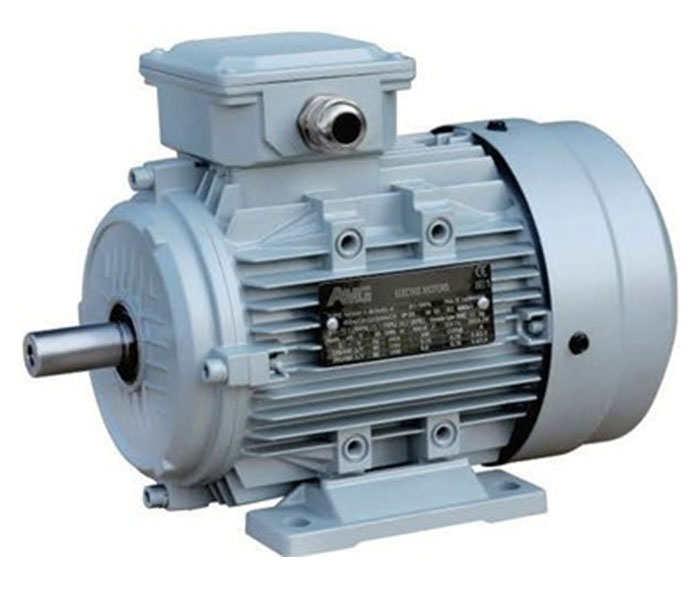

AMG Standard Efficiency IE1 Aluminium Motors

Efficiency: IE1 Standard Efficiency

Construction: Cast Aluminium Totally Enclosed Fan-Cooled (TEFC)

Output power: 0.12-11kW

Frame size: 63 – 160

Speed: 2, 4, 6 & 8 Pole

Voltage: △ 220-240V or Y 380-415V 50Hz& 60Hz (63 to 100 frame)
: △ 380-415V or Y 660-690V 50Hz & 60Hz (112to 160 frame)
: △ 525-550V (63 to 132 frame)
: △ 525-550-575V/1000V (160 frame)

Winding: F Class insulation, B Class temperature rise

Mounting: Standard Configurations

IP rating: IP55

Compliance: SANS 1804: 1&2

Application: General Industry
